Ultra Performance, Low Cost, Radar Range/Distance Sensors

Pexla delivers millimeter-level, non-contact distance sensing for critical water and industrial applications. Built with simplicity in mind, our sensors ensure a seamless workflow for OEMs and hobbyists alike.

  • 60 GHz Radar Sensors
  • Up to 1mm accuracy
  • Minimally affected by environmental conditions
  • Multi-Protocol: UART, USB, ModBus RS485, SDI-12, I²C. Maxbotix pin-compatible. Drop-in replacement
  • Rich API: 100+ configurable parameters via RAM/Flash
  • Ultra-low Power
Explore Sensors
Integration
Pexla

Radar vs Ultrasonic Sensors

Pexla radar sensors significantly outperform traditional ultrasonic sensors. By combining a highly focused beam angle with true environmental immunity and a fully sealed, weatherproof enclosure, Pexla ensures flawless data collection in any condition.

Specifications

Range0.2m – 35m
(0.5′ to 115′)
Accuracy±1 mm (<10m)
±1 cm (>10m)
Frequency60Gh
(4Mz bandwidth)
Radar TypeFMCW
(60 GHz)
Mounting ThreadM42
Sampling Rate2-20 Hz
(depending on filtering algorithm)
Temperature-40°C to +85°C
IP RatingIP68
Input Voltage3.6v-6v (3.3V on I/O pins)
Dimensions35mm (dia) x
45mm (length)
Power Consumption8uA Sleep
150mA Operation
Hydrology and Flood ✔
Wastewater✔
Irrigation✔
Coastal and Ocean Water✔
1″ (26mm) NPT: Front Panel Mount1 1/2″ (42mm) NPT: Rear Panel Mount

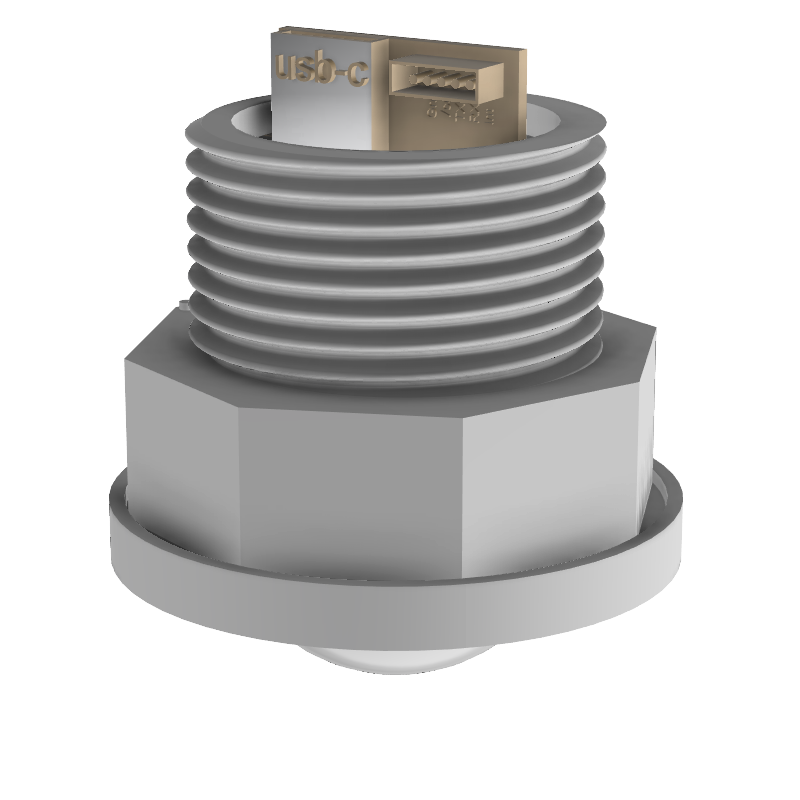

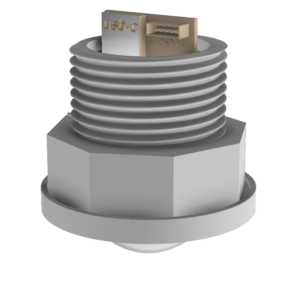

PX-UART: UART+RS232+USB
USB Comm Port: reading data, configuration, firmware updates
UART: reading data, configuration

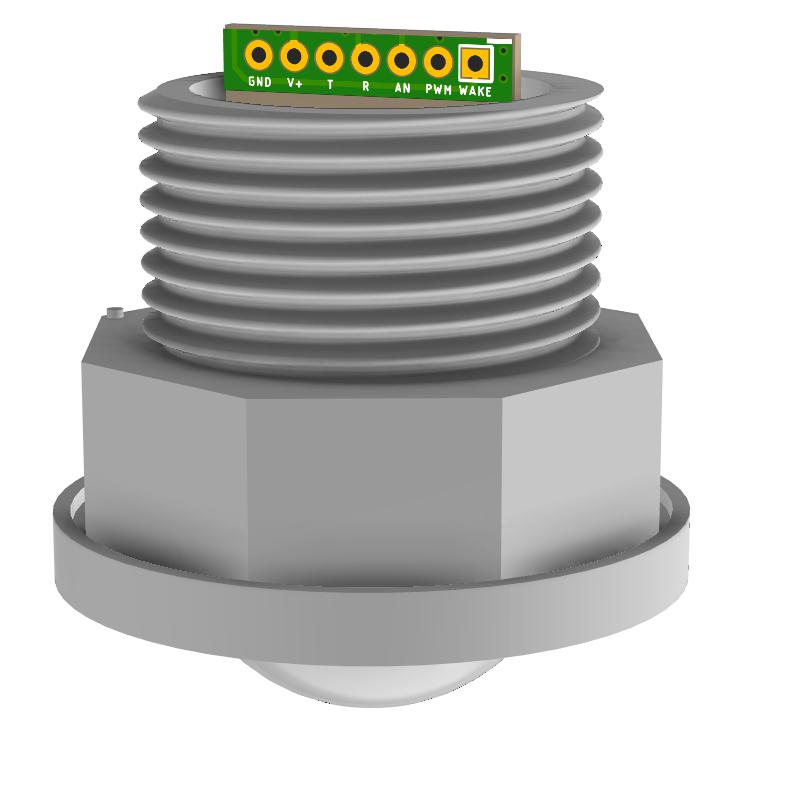

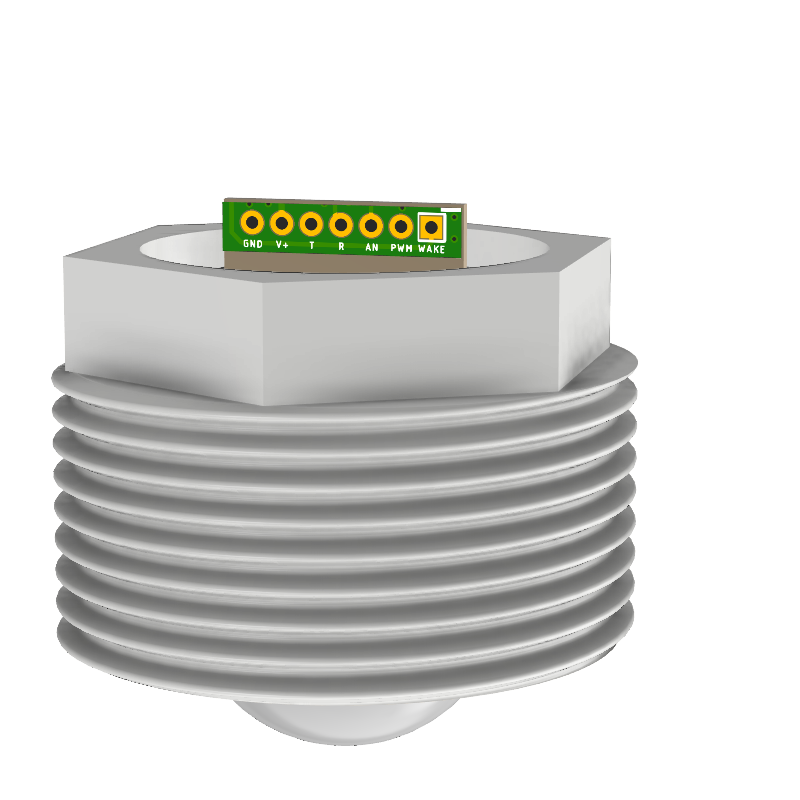

PX-MX: MaxBotix Compatible
UART/RS232: reading data, configuration

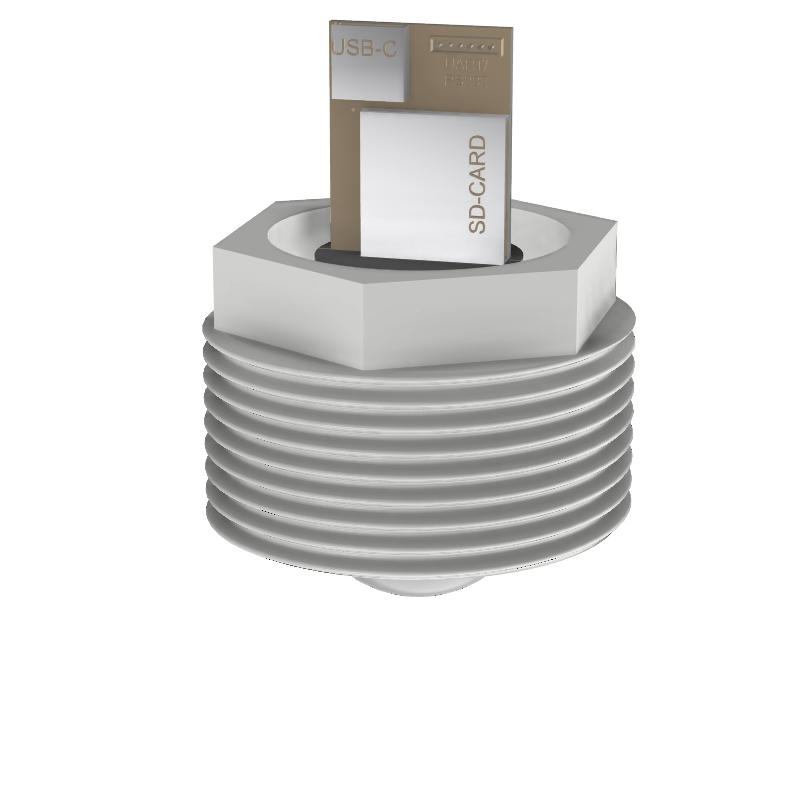

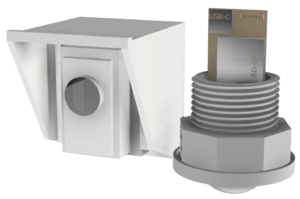

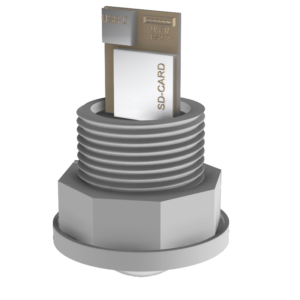

PX-SD-Cam: USB Serial Port + UART + SD Card
USB Comm Port: reading data, configuration, firmware updates
UART: reading data, configuration
SD Card: Offline Storage

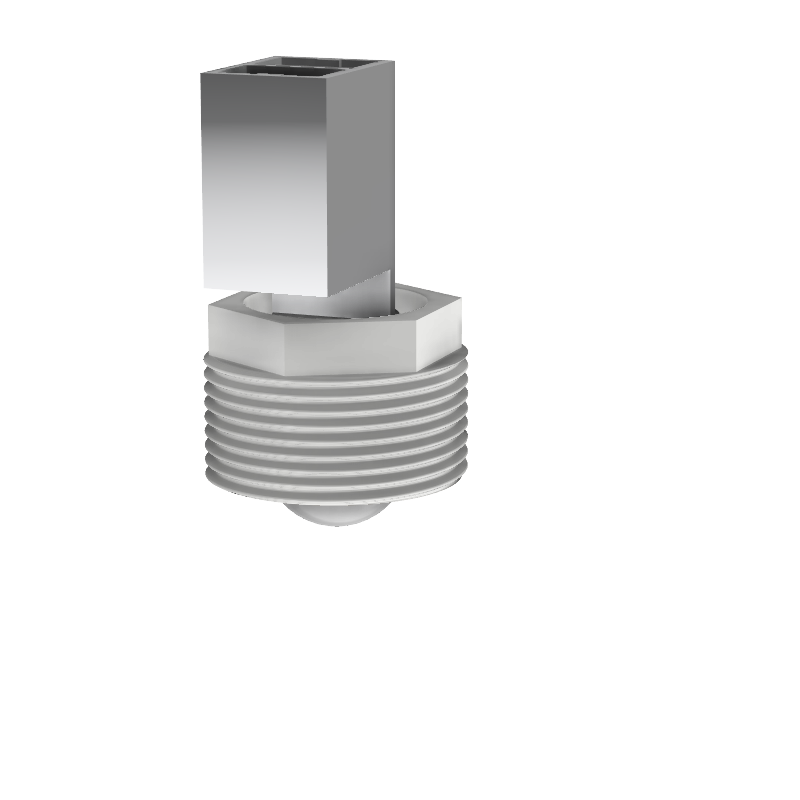

PX-Modbus: ModBus + USB Serial Port
USB Comm Port: reading data, configuration, firmware updates
UART: reading data, configuration
ModBus: 5V/12V Modus via ethernet cable		N/A
